Quantum Series

Max Temperature: 203 °F (95 °C)

Max Pressure: 60 PSIG (0.41 MPa)

Power: 30kW to 216kW

Voltage: 208
380
415
480

Certifications: CE, Semi S2 & S8

Applications: Semiconductor/Electronics
LED/Flat Panel
Solar
Chemical Processing
Aerospace

Request a Quote

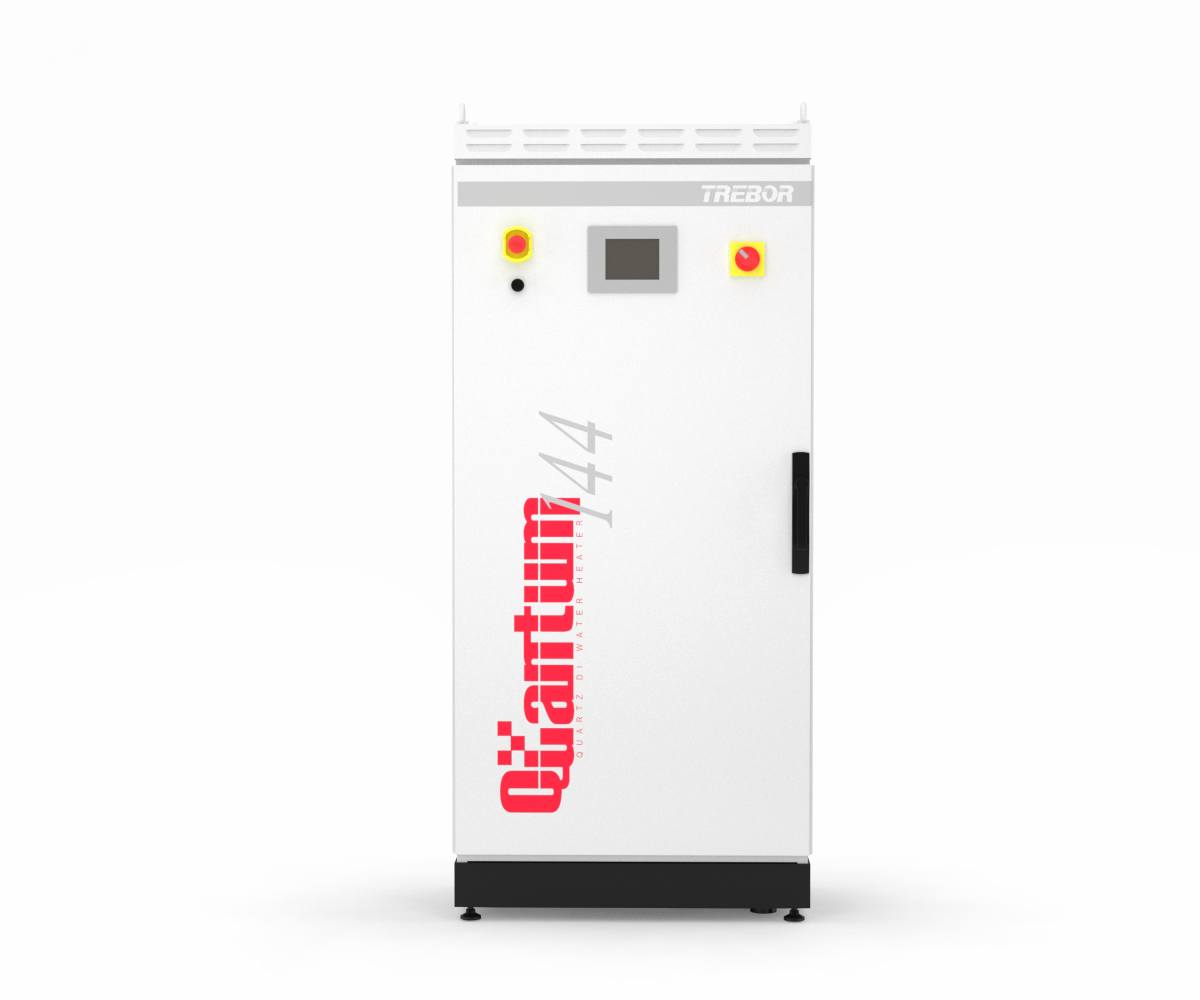

The Quantum Heater Series features Trebor’s thin-film on quartz electric resistive technology in an enclosed, custom built unit that offers various power configurations, plumbing options, control options, and user interfaces. Our heating technology provides unmatched response time to changes in flow rates or process set points. The Quantum is intended for use in applications where process control, cleanliness, and system uptime are critical.

  • MTBF >20,000 Hours
  • Redundant Safety Features
  • LCD Color Touch Screen Display
  • +/- 0.5° C Accuracy
  • No Standby Flow Required
  • High Purity Flow Path Made Of GE214 Quartz
  • Crevice-Free Flow Path Means No Bacteria Growth Or Purging Required
  • Multiple Voltage And Kilowatt Options
  • Customizable Configuration For Power, Space, Fluid Connections And Other Process Needs
  • Remote Control Options
  • Overheating Controls And Warnings

POWER/VOLTAGE
  • From 30kW To 216kW
  • 208V, 380V, 415V, 480V



CONFIGURATION OPTIONS
  • Leveling Casters
  • Seismic Brackets
  • High Temperature
  • Custom Options Available



COMMUNICATION OPTIONS
  • Ethernet
  • ModBus / RTU
  • Device Net
  • I/O Enabled

MANUAL

Quantum Series – DATA SHEET

DATA SHEET

Quantum Series – MANUAL

POWER OPTIONS

30kW (208V, 380V, 415V, 480V)

36kW (480V)

40kW (208V)

50kW (208V)

60kW (208V, 380V, 415V, 480V)

70kW (208V)

72kW (480V)

80kW (208V)

90kW (208V, 380V, 415V, 480V)

100kW (208V)

108kW (480V)

120kW (208V, 380V, 415V, 480V)

144kW (480V)

180kW (380V, 480V)

216kW (480V)

CERTIFICATIONS

Declaration of Conformity (Doc) Quantum & QSeries Heater (PDF)

Quantum and Quantum NXT – SEMI S2 Certification (PDF)

SIZING CALCULATOR



In order to determine which heater size is needed, calculate the required kilowatt with the following formula:

Required kW = 0.264 * (Flow in GPM) * (Temperature Delta in °C)

Example

Ambient Water Temperature = 25° C

Desired Process Temperature = 70° C

Temperature Delta = 45° C

Required kW = 0.264 * (4 GPM) * (45° C) = 47.5kW

For optimal temperature response and to compensate for seasonal changes in ambient water temperature, we recommend adding 20% excess heating capacity.

47.5kW * (1.2) = 57kW

The best option for this application is a 60kW heater.
